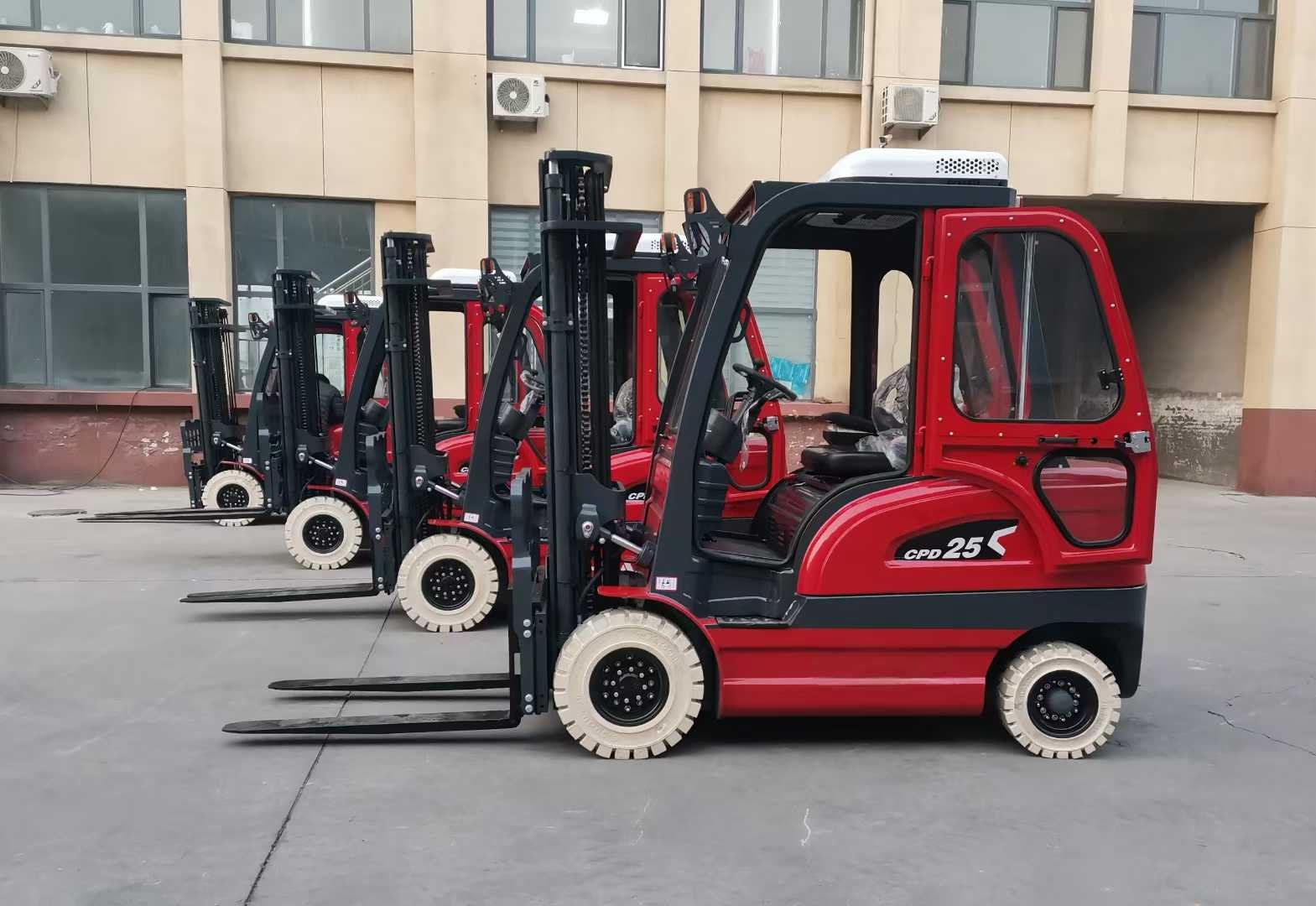

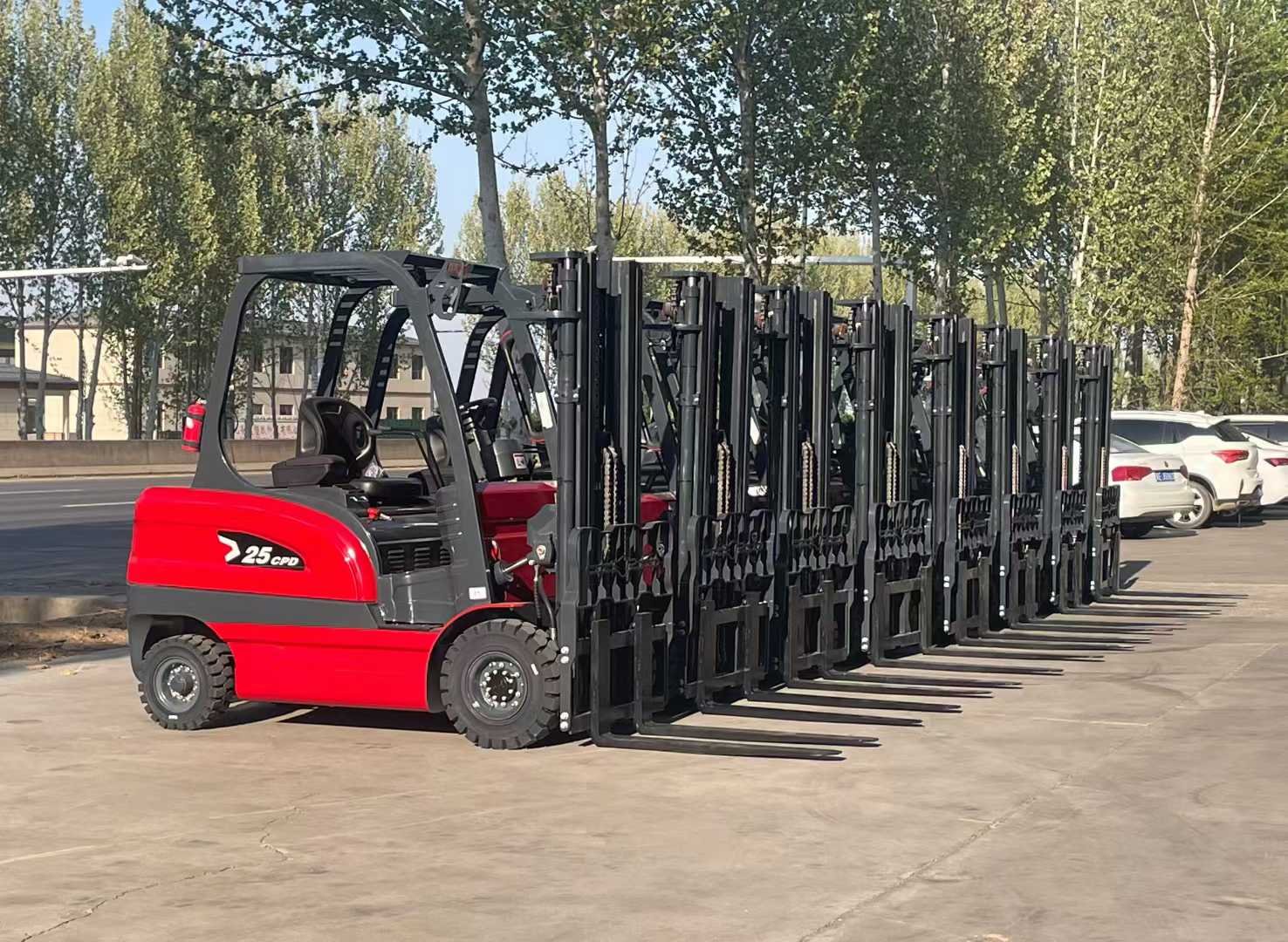

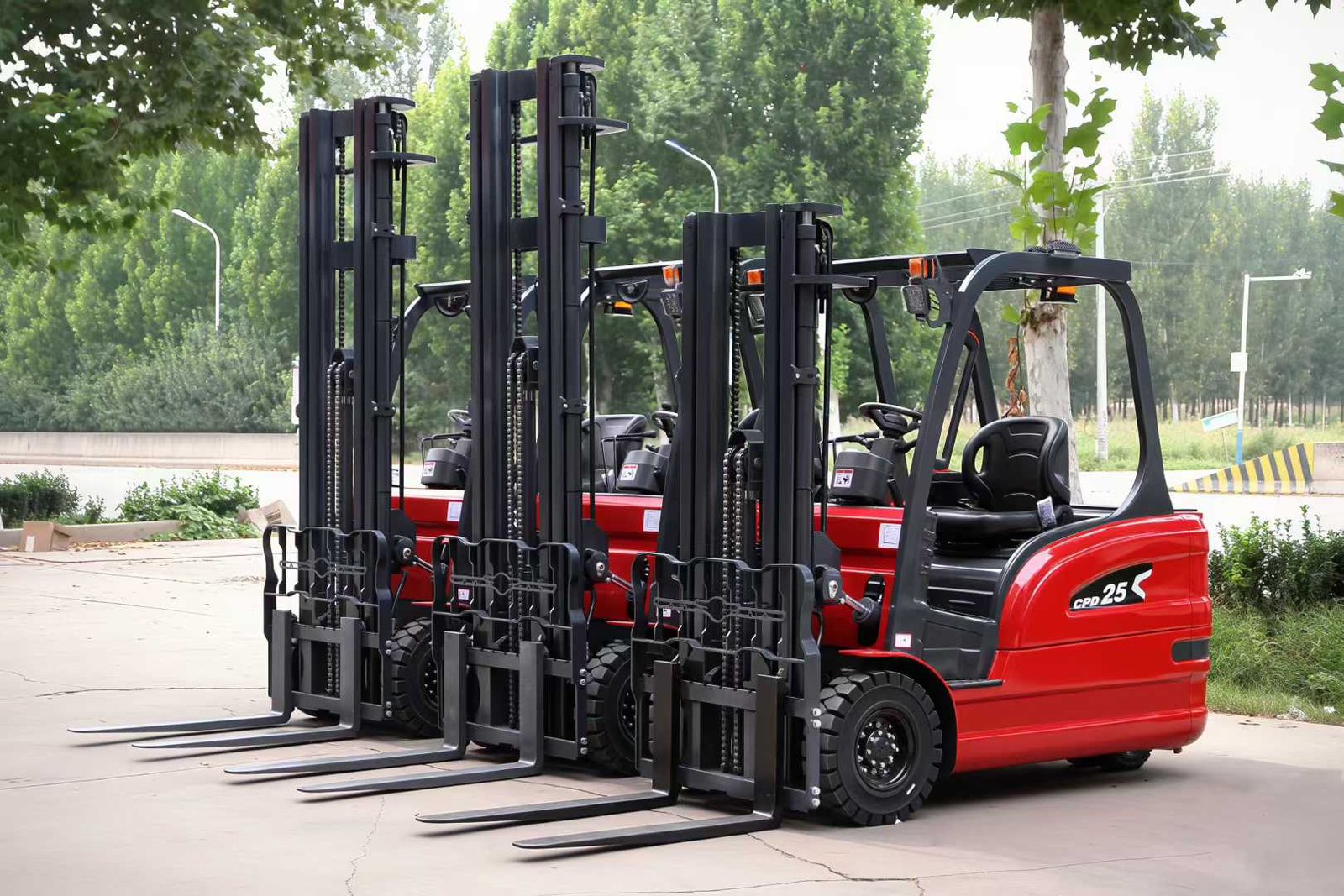

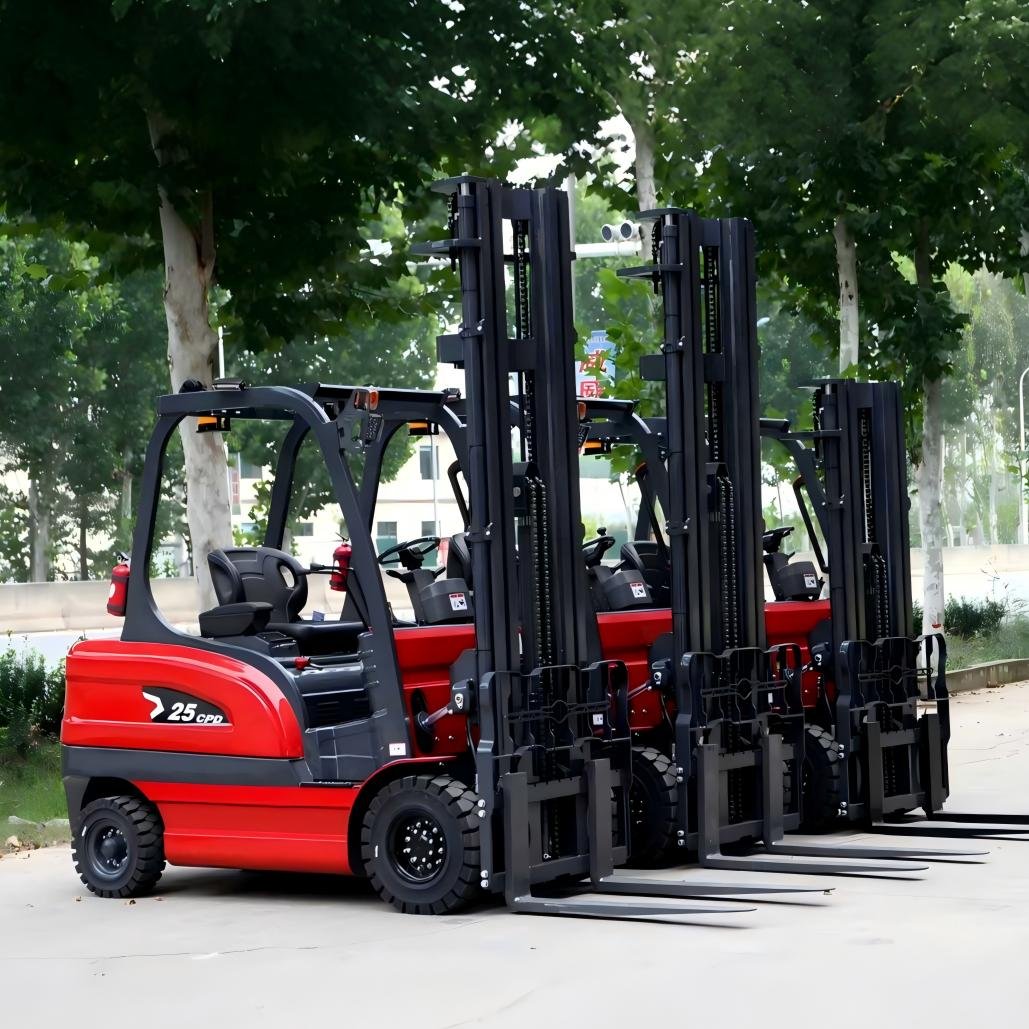

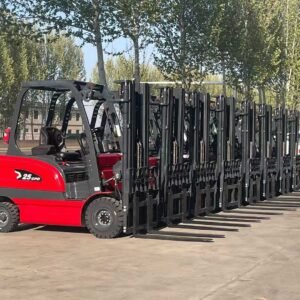

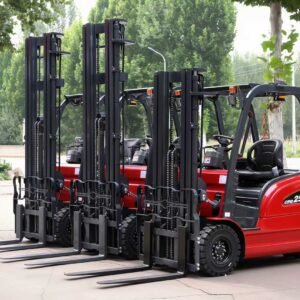

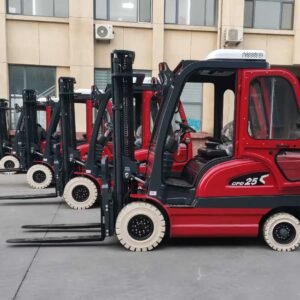

2.5TON Electric Forklift

L-Series 1-7 Ton Lithium Battery/Lead-Acid Combination Counterbalance Forklifts

Specifications/Models:

CPD10/12/15/16/20/25/30/35/40/50/60/70

Rated Lifting Capacity:

1000/1200/1500/1600/2000/2500/3000/3500/4000/5000/6000/7000kg

Load center distance: 500mm

Power Type: Lithium Battery/Lead-Acid Combination Battery

Optional configurations: Three-point forklift/cab/non-marking tires

Standard Mast Lifting Height: 3000 mm



Safety

A three-section drive axle enhances longitudinal stability; a high-mounted rear axle structure improves lateral stability.

A small-diameter steering wheel and right-hand instrument panel effectively increase forward visibility.

Operating Space

Large, rounded front legs of the overhead guard and a raised overhead guard expand the driving space.

A higher steering wheel increases foot space and improves driver comfort.

Working Efficiency

Small turning radius, easy steering, and agile maneuverability.

Fast lifting speed, strong climbing ability, and high working efficiency.

Energy Saving and Consumption Reduction

Optimized hydraulic system design emphasizes energy efficiency, effectively reducing overall vehicle energy consumption.

Equipped with LED signal lights, saving over 80% on lighting energy.

Comfort

A rear grab handle with horn function ensures a stable and comfortable reversing position for the driver; a car-like dual-handle combination switch significantly enhances driving comfort; a side-pull battery function caters to different user needs.
